This Vintage Invention Changed the Face of Precision Forever
June 28, 2024
Source: Wikipedia

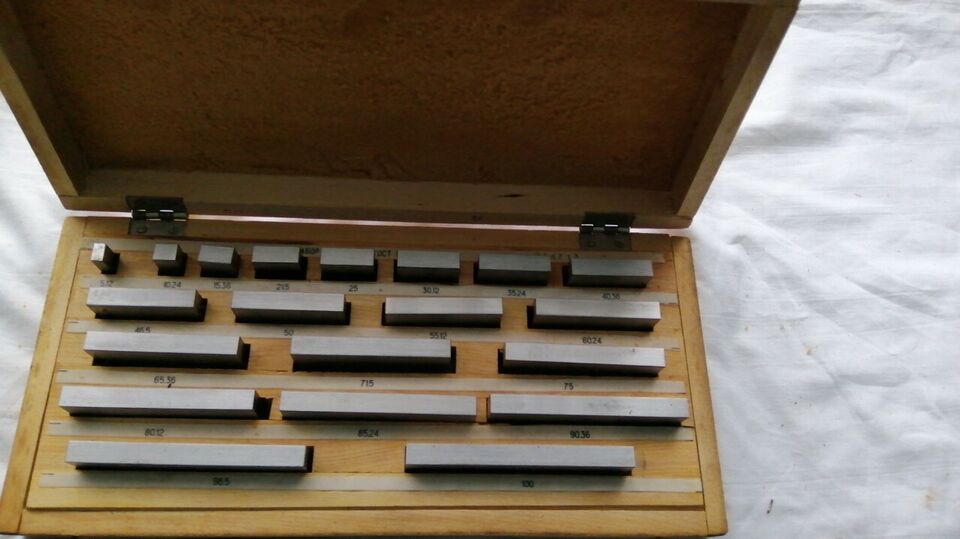

Ever since I was a child, I have spent much time in my grandfather’s workshop which was a place of whirring machinery and the tang of metal shavings. The workbench was another world in itself, there were various tools lying around disturbing the messy order and giving an impression that only a wizard could create something as perfect as the items on the workbench. Among these tools there was a set of metal blocks in apparently new condition packed in a wooden box which I had been observing for some time but had not yet mastered the use of. I only came to know about the wonderful world of gauge blocks or the so called “Jo blocks” many years later.

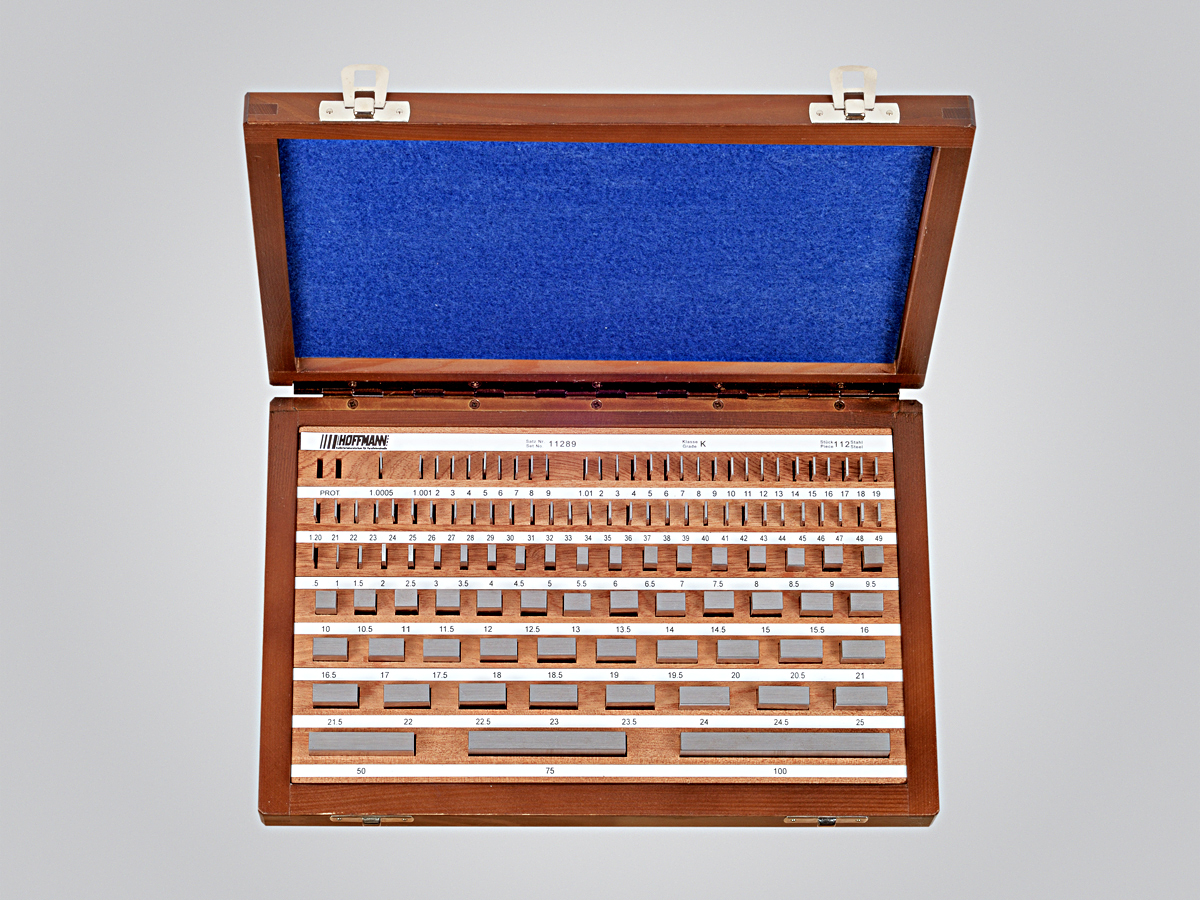

Gauge blocks are a kind of measuring equipment, which were developed by the Swedish machinist Carl Edvard Johansson in 1896. These small ordinary metal or ceramic blocks totally changed the approach to precise measuring in machining as well as toolmaking. The idea behind Johansson’s innovation can be attributed to the basic yet crucial requirement of precision. Consider a period where components of machines had to be accurately joined and crafted men and women used their vision and touch. Interestingly, Johansson’s blocks were used as a standard to compare such tools as micrometers and calipers and make sure that no measurement was imprecise.
At the onset of the twentieth century, industries across the globe started to use the Johansson’s gauge blocks and this became the new reference point for accurate measurements. These blocks became enterprise standard in manufacturing and spread throughout the industry to affect everything from automobile production to aerospace engineering. They represent the age of artisans, the age when people paid attention to fine details and the beauty of creation, the age of masterpieces which were made with incredible attention to every detail and an emphasis on the constant improvement of technology.
What is perhaps the most interesting is the process of wringing in gauge blocks. This entails the rubbing together of the ultra-flat surfaces of the two blocks until they lock onto each other in a manner that is almost similar to sorcery. This bond that is created with vacuum pressure, surface tension, molecular attraction enables the taking of very acute measurements. The blocks stick together in a most remarkable manner and one can apply a good amount of pressure on them and they will not budge.
Gauge blocks are available in different grades of accuracy depending on the level of application that one intends to use them in. From the very establishment of workshop standards to the calibration grade blocks, all these tools have been crucial in preserving the credibility in the industries. They are made from materials such as hardened steel, Tungsten Carbide and ceramics; these are tools that are built to last and speak of the ruggedness of tools of old.
Recalling the incident of my grandfather’s workshop, I now realize the significance of those metal blocks. They were not simply instruments; they were a testament to craftsmanship and excellence. They make one recall the eras of precision, where even the minutest of the measurements used were significant. They are the link of past and present, the symbol of the importance of the hand made.
Terms like ‘technology‘ and ‘improvement‘ are words that are tossed around so often in todays world, and it is very easy to forget the roots of the tools we use ever so often. As the gauge blocks, so the past decades were marked by people’s inspiration and hard work. It encourages them and us to observe the aesthetics of exactness and bear the standards of excellence in all our endeavors. Thus, while commemorating these great tools, we also pay tribute to the spirit of creativity and achievement that lives with us to this very day.
The next time you are likely to work with an old set of gauge blocks, you should consider the history behind them. Many of these tools have become almost a trademark of the machinist’s profession and, to this date, represent the high level of accuracy that was a hallmark of the golden age of manufacturing.
